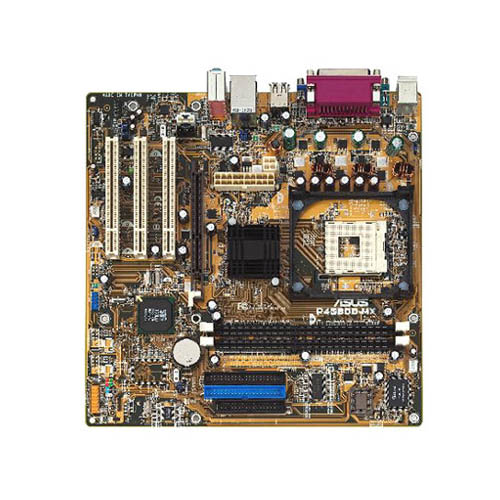

Manufacturer		Asus
Manufacturer Part #		P4S800-MX
CPU Support	Socket Type	Socket 478
	CPUs Supported	Intel Pentium 4/ Celeron
	Front Side Bus Speed (FSB)	800/533/400 MHz
Form Factor		microATX
Chipsets		SiS 661FX SiS 963L
BIOS		2Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, CrashFree BIOS, C.P.R.(CPU Parameter Recall)
Memory	Number of Slots	2 x 184-Pin DIMM Sockets
	Memory Type	DDR
	Maximum Memory	2 GB
Storage		2 x UltraDMA 133/100
Integrated Features	Audio	ADI AD1888 SoundMAX 6-channel CODEC S/PDIF out interface
Network	LAN	Integrated 10/100 Mbps LAN controller + VIA PHY
Expansion Slots		1 x AGP8X (1.5V only) 3 x PCI
USB		Integrated 6 USB2.0 ports
Other ASUS Special Features		Power Loss Restart support S/PDIF out interface ASUS EZ Flash ASUS CrashFree BIOS
Back Panel I/O Ports		1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 4 x USB 2.0/1.1 1 x RJ45
Internal I/O Connectors		1 x USB 2.0 connector support additional 2 USB 2.0 ports CPU / Chassis FAN connectors 20-pin ATX Power connector 4-pin ATX 12V Power connector IDE LED connector, power LED connetor S/PDIF out connector CD / AUX audio in Front panel audio connector GAME/MIDI connector
Dimensions (W x D)	Unit	9.6" x 9.6"

Carte livrée nue. Doc et drivers disponibles sur site constructeur.
