Carte mère livrée nue, aucun accessoire, doc ou driver n'est fourni.
Les drivers sont disponibles sur le site constructeur.
La Doc n'est pas nécessaire, tout est noté sur la carte.

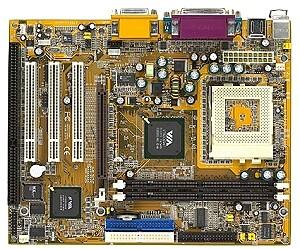

Détails techniques Spécificités

Dimensions	Micro-ATX(194mm x 244mm)
CPU	Supports Intel Socket 370 CPU System clock supports 66/100/133 MHz
Chipset	VIA 694T + VT82C686B
Memoire	Two 168-pin SDRAM DIMMs up to 1GB Supports PC100/133 SDRAM modules
Bus	One Universal-AGP slot for both 2X/4xAGP (v2.0 compliant) Three 32-Bit PCI slots (v2.2 compliant) One ISA slot
Audio	Audio subsystem via AC-link With external high quality AC'97 Codec Complete software driver supports for Windows OS
Video	One Universal-AGP slot for both 2X/4xAGP (v2.0 compliant)
UltraDMA IDE	Two UltraDMA-66/100 IDE Ports Supports PIO Mode 4 up to 16.6 Mbps, Multi-Word DMA Mode 2 and Ultra DMA mode 5 up to 100MB/s with Bus Mastering Bus-Mastering software drivers for all common multitasking operating systems
USB	UHCI compliant USB host controller with Root hub Four USB ports (UHCI v1.0 compliant) with over-current protection Optional USB adapter for additional USB ports
On Board Super I/O Controller	Two UARTs support one serial port and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB
Boot-Block Flash ROM	Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features
